12/24 Volt DC Series Parallel Switch

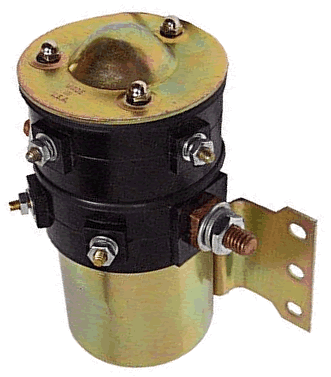

1119845 12 / 24 Volt DC  Starter Relay

1119845
Replaces Delco Remy 1119845
12/ 24 Volt DC
Series Parallel Switch
12/24 Volt Series Parallel Solenoid Switch
Voltage: 12/24V DC
Double Stage
1500 Amp Intermittent duty Cycle
45 Amp Maximum Charge Back Circuit
Contacts: Silver
Flat Base type bracket Large studs: 3/8"16
Coil terminals: 10-32 Studs


Typical Wiring Diagram For Negative Ground System


1119845 Series Parallel Switch, Cranking & Charging Circuits
