You  Are In Our Speedometer Cable & Ratio Box  Information,Area.
Click Here to View Starter Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Click Here to View Electrical Information,We Are Updateing Our Web Site Please keep Checking Back Thank You !!
Starter Solenoids  12 / 24 Volt Auromotive & Heavy Duty Delco Remy, Motorcraft,Nippondenso Leece Neville, Prestolite,
universal ignition switches,heavy duty toggle switches,push pull type switches
Honeywell / Hobbs Pressure Switches & Hour Meters
Texas Industrial Electric has been servicing customers in the
San Antonio Texas and surrounding area since 1981.
We will be adding more content to our
Speedometer Drive Train area very soon.
Please take a look through our web site,and feel free
to contact us if you have any questions
.
Stewart Warner Products, Ratio Adapters,Speedometer Cable & Casing , Guages, And More.
Click Here To View A Drawing .90 o  5/8" x 18 Speedometer Head Angle Adapter For Tight Areas Behind The Dash.

90 Degree Speedometer And Tachometer Head Adapter
5/8" x 18 Thread

Click Here To View Drawing Of The 407010-F Angle Box
"We Now Have Both Numbers In Stock"
407010-F
For tight areas behind the dash.
Reverse Rotation 411335-D
400 Series 7/8-18" 90 Degree Angle Adapters.

400 Series 90 Degree Angle Adapters,Direct Drive and Reverse Rotation.
Click On Image For More Information

7/8"- 18 Thread
Available in Direct Drive and Reverse Rotation.
Transmission Clearance,Engine Tachometer Take Off
Many Drive and Driven Tip Configurations Available.
Reverse Cable Direction at Transmission.

Stocking ratios
.250:1.000 , 500:1
.000, 1.000 :1.000, 1.500 :1.000, 2:1.000

500 Series Dual Driven Box
500 Series Dual Driven Box
7/8" x 18 Thread
Drive 2 Devices From 1 Takeoff
.104 sq tip / .152 / .187 /.203 Tang Are Available




400-18D1
Metric 18 mm X 1.5 Thread 90 Degree
Speedometer And Tachometer Head
Speedometer Head Adapter
Direct Rotation or Reverse Direction
Available Reverse Rotation 400-18R1

Click On Image For More Information
400 Series 7/8-18" With Ford Plug
90 Degree Angle Adapter.

400 Series 7/8-18" With Ford Plug

FDGMA-90
Click On Image For More Information

Available in Direct Drive and Reverse Rotation.
Reverse Cable Direction at Transmission.
Stocking ratios
.750:1 & 1.000
Other Ratios are
Available

Adapt Your Early Model Chrysler Plug in Transmission
 to use the G M type Speedometer Cable & Housing ,
Great For Speedometer Correction Adapters,
Speed Sensors. Convert Your Early Model Chrysler Plug
in Transmission Cable & Housing
to a 7/8-18" Connection.

1.125"OD
Chrysler Adapter Convert Your Early Model Chrysler Plug in Transmission Cable & Housing to a 7/8-18" Connection 1.125 OD
CHGMA
This Adapter Will Not Fit Early Model Chrysler with a .965" OD Plug

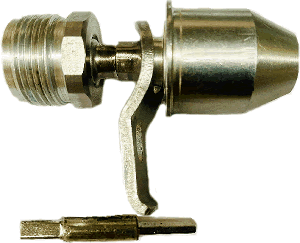

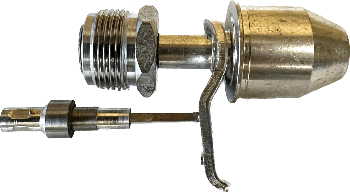

Adapt Your Early Model Studebaker Plug in Transmission
 to use the G M type Speedometer Cable & Housing ,
Great For Speedometer Correction Adapters,
Speed Sensors.
Convert Your Early Model Studebaker Plug
in Transmission Cable & Housing
to a 7/8-18" Connection.
Plug O.D. .995"
2.750" OAL

Early Model Studebaker Plug in Speedometer Transmission Plug Adapter
AMGMA


800 Series Drive Train Correction Ratio Adapters.800 Series Drive Train Correction Ratio Adapters.
Click Here or On Image for Drive & Driven Tips Selection
7/8" x 18 Thread
800 Series Drive Train Correction Ratio Adapters.
Mechanical Speedometer Adapter Correction Boxes
Can Be Assembled For Offset Or Straight Through Drive

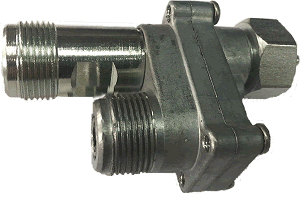

800 Series Dual Drive Adapters.
800 Series Dual Drive Box.
7/8" x 18 Thread

Drive 2 Devices From 1 Takeoff
.104 sq tip / .152 / .187 /.203 Tang Are Available

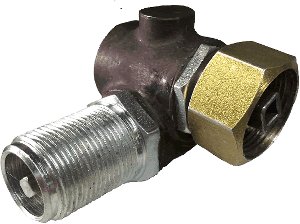

7/8"- 18 Thread .187 Female Sq. X .187 Male Sq. Tip Jones, Jones Motorola & Moroso , AC Tachometers.
400187D-1
Click On Image For More Information

90 Degree Angle Adapter 7/8"- 18 Thread
.187 Female Sq. X .187 Male Sq. Tip
Available in Direct Drive and Reverse Rotation.
Solve Tight Cable Bend Issues.
Jones, Jones Motorola & Moroso , AC Tachometers
With the .187 Male Sq Tip in the Tachometer

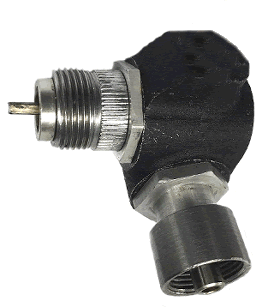

90_Degree_.750-20_Adapter.asp
400-750-20D1
Click On Image For More Information

90 Degree Angle Adapter
3/4-20" X 3/4-20 " Internal Thread

.104 Male Sq. X .105 Female Sq. Tip Hole
Available in Direct Drive and Reverse Rotation.
Solve Tight Cable Bend Issues.
For Vintage Speedometers & Tachometers
With the 3/4-20" Internal Thread.

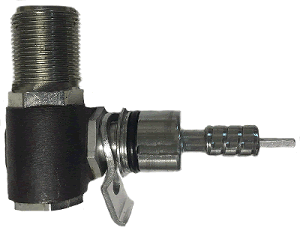

400 Series 7/8-18" With Vintage Ford Plug
90 Degree Angle Adapter.


FDGMAV-90
Click On Image For More Information

Available in Direct Drive and Reverse Rotation.
Reverse Cable Direction at Transmission.
Other Then 1:1 Ratios are
Available

Adapt Your Ford Plug in Transmission
 to use the G M type Speedometer Cable & Housing ,
Great For Speedometer Correction Adapters, Speed Sensors.


Adapt Your Ford Plug in Transmission to use the G M type Speedometer Cable & Housing , Great For Speedometer Signal Grnerator, Speedometer Correction Adapters.
FDGMA
Ford Lower Plug - In to 7/8-18" Adapter
Ford Transmission to 7/8-18" Cable Adapter.


Adapt Your Early Ford Plug in Transmission to use the G M type Speedometer Cable & Housing , Great For Speedometer Correction Adapters or Speed Signal Generator.
FDGMA-V

Early Model Ford Lower Plug - In to 7/8-18" Adapter
Ford Transmission to 7/8-18" Cable Adapter.
Stainless Body.

Adapt Your Ford Plug in Transmission
 to use the 5/8-18" Speed Pulse Generator / Signal Generator
For Electric Speedometer.

Ford Plug in Transmission To A 5/8-18" Speed Pulse Generator / Signal Generator For Electric Speedometers.
FD625
Ford Transmission to 5/8-18" Nut
Inner Flexible Speedometer & Tachometer Core
HS101 .130 Left Lay 418614 Automotive Inner Core


HS104 .150 Left Lay Heavy Duty 825128 Inner Core


HS107 .187" Left Lay Extra Heavy Duty Core 418615



Outer Speedometer & Tachometer Housing / Casing
HC101 .243/.250 Steel
98578
.243 / .250 Galvanized Steel Outer Housing
HC105 .297 W / Vinyl Cover
.297  Galvanized Steel Outer Housing with Vinyl Covering.
HC106 .445 W / Vinyl Cover
816647-100
.445  Galvanized Steel Outer Housing with Vinyl Covering.
HC109 .330 / .333 Dual Casing
820905-100
.330 / .333 Dual Plastic Housing
HC111 .445 Steel
will replace HC104
24068-100
.445 Galvanized Steel Outer Housing


Tips for .130" Cable Core
HT101
.130 x .156 Tang
.130x .156 Male Tang
400211
HT102
.130 x .203 Tang
.130x .203 Tand
33710
HT103
.130 x .187 Tang
.130 X .187 Tang
104461
HT115
.130 x .105 FM SQ.
.130 x .104 Femle Sq.
HT127
.130 x .104 SQ.
.130 x .104 male Sq..
418035
HT134 Tang
.130x .156
.130 x .156 Male Tang
63684
HT140
.104 Male Sq. Cable Tip.
.130 X .104 SQ.
HM142
F-8
.130 Cable Stop Collar

811024
.130 Collar

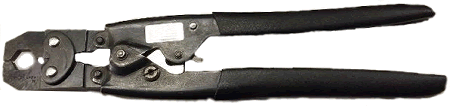

.150 Cable & .445 Casing Crimp Tool
HM126
.150 Cable & .445 Casing Crimp Tool ,This Tool Will Crimp Most of the Ferrules Used. Will Crimp The .130 & .150 Cable Tips.
This Tool Will Crimp the Ferrules Used on .445 casing
This Tool will Crimp .150 Cable Core Tips.

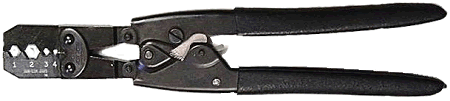

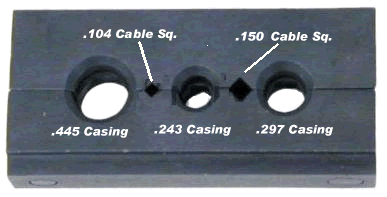

.330/333 & .445 Casing Cable & .130 - .150 Crimp Tool
CCCT
.330/333 & .445 Casing  & .150 Crimp Tool ,This Tool Will Crimp Most of the Ferrules Used. Will Crimp The .130 & .150 Cable Tips.
This Tool Will Crimp Most of the Ferrules Used. Will Crimp The .130 & .150 Cable Tips.

Tips for .150" Cable Core
HT105
.150 x .150 Male SQ
HT105 /421643 .150 x .150 Male SQ.
421643
HT106
.150 x .152 Tang
HT106 /408758 /.150 x .152 Male Tang
408758
HT109
.150 x .104 SQ
HT109 /65358 /.150 x .104 Sq Male Tip
65658
HT111
.150 x .104 Female SQ
HT111 /65001 /.150 x .104 Sq Female Tip
65001

HT112
.150 x .152 Tang
With Groove

HT112 /421795 /.150 x .152 Male Tang with Groove
421795

HT113
.150 x .187 Female SQ
HT113 /409353 /.150 x .187 Sq Female Tip
409353

HT114
.150 x .187 Female SQ
HT114 / 36833 /.150 x .187 Sq Female Tip
36833
HT120
.150 x .213 Female Tang
HT120 / 78869 .150 x .213 Female Tang Hole
78869
HT107
.150 x .104 Male SQ
HT125 / 65002 .150 x .104 Male SQ
65002
HT129
.150 x .124 Male SQ
HT129 / 98984 .150 x .124 Male SQ
98984
HT130
.150 x .187 Tang
HT130/ 64339 .150 x .187 Tang
64339
HT131
150 x .203 Tang
HT131/13909 150 x .203 Tang
13909
HT139
.150 x .104 Male SQ
HT139 / 95115 .150 x .104 Male SQ
95115
HT149
.150 x .191 Female Tang
HT149 / 96127 .150 x .191 Female Tang
96127

14910
.150 Cable x . 125" Blade

Special Drive Tip Early 1900's Vehicles
Special Drive Tip
Early 1900's Vehicles

.130 - .150 Cable Tip Swaging Tool Disposable
SD-1
.130 / .150
Cable Tip Swaging Tool
Disposable
"May Not Crimp All .130 / .150 tips"
Ferrules Nuts
HN101
5/8-18 Thd. Round Nut
5/8-18"
820346-4
HN102
7/8-18 Thd. Round Nut
7/8-18"
820346-22
HN103
3/4-20" Thd. Hex Nut
3/4-20"
820346-17
HN104
3/4-20" Exernally Thd. Round Nut
3/4-20" Externally Thread
820346-16
HN105
5/8-18 Exernally Thd. Hex Nut
5/8-18" Externally Thread820346-7
HN111
7/8-18 Thd. Hex Nut
7/8-18"
820346-23
HN112
3/4-20" Thd. Round Nut
3/4-20"
820346-11, 820346-12
HN113
5/8-18 Thd. Hex  Nut
5/8-18"
820346-1


7/8-18" External Thread 5/8-18" Internal Thread Adapter
7/8-18" External Thread
5/8-18" Internal Thread Adapter
HM105T

7/8-18" INTERNAL THREAD CAP
875-18C
7/8-18"
Internal Thread Cap

Ferrules .445" Diameter Heavy Duty Speedometer Casing
HF105
.420 / .445 Upper Ferruel For 3/4-20" Externally Thd. Nut
Upper Ferrule 3/4-20" Nut
820215-1
HF106
.420 / .445 Upper Ferruel For 5/8-18" Thd. Nut
Upper Ferrule 5/8-18" Nut
820214-4
820214-2
820214-1
820214-1, SO-43  .420 / .445 Upper Ferruel For 5/8-18" Hex Thd. Nut
Upper Ferrule 5/8-18"Nut
HF111
820500-4 ,B-28  .420 / .445 Lower Ferruel For 7/8-18" Hex Thd. Nut
Lower Ferrule 7/8-18"Nut
With Bushing
820211-4

HF126
Hf126, 820211-2 Lower Compensating Ferrule  .420 / .445 Lower Ferruel For 7/8-18" Hex Thd. Nut
Lower Ferrule 7/8-18" Nut
For Compensating Tips
820211-2

HF125
820500-4 ,B-28  .420 / .445 Lower Ferruel For 7/8-18" Hex Thd. Nut
Lower Ferrule 7/8-18"Nut
820500-4
HF123
Upper Ferrule for 7/8-18 Male Thd .420 / .445  Speedomerer Casing.
7/8-18" Thd. Male Ferrule
820500-11


HF143
820213-3. B-25  Upper Ferrule for 5/8-18 Male Thd .420 / .445  Speedomerer Casing.
5/8-18" Thd. Male Ferrule
820213-3


Tips for .187" Cable Core
HT104
.187 x .203 Tang
HT104 / 36912 /.187x .203 Male Tang
32912
HT116
.187x .156 Tang
HT116 / 415996 .187x.156 Male Tang
415996
HT121
.187 x .193 SQ. Hole

Stewart Warner 414676 .187 x .193 SQ. Hole
414676
HT132
.187 x .187 Tang
HT132 / 101254 .187x .187 Male Tang
101254
.187 X .161 Female Slot
Stewart Warner 406908 .187 Cable X .161 Female Slot Hole
406908



Compensating Tips for .150 Inner Core
SSW HM121
.124 sq. X .156 Tang
.124 sq. X .156 Tang
SW 818750

SSW HM122
.124 sq. X .187 Tang
.124 INT, SQ X .187 TANG
SW 817769

SSW HM123
.124 sq. X .203 Tang
.124 INT, SQ X .203 TANG
SW 817759


SSW HM124
.124 sq. X .104 SQ
.124 INT, SQ X .104 SQ
SW 818749

SSW HM125
.124 sq. X .150 SQ
IHC Truck
.124 sq. X .150 SQ. For IHC Trucks
SW 817769
SSW HM144
.124 sq. X .104 SQ
Ford Truck
.124 INT, SQ X .104 Sq Ford Truck
SW 820152
Ferrules for .243" Diameter Outer Casing
.243 / .250 Upper Ferrule
HF113
Upper Ferrule for 5/8-18 Nut .243 / .250 Speedomerer Casing.
94353
Use With HN101 Nut

243 / .250 Lower Ferrule
HF112

Lower Ferrule for 7/8-18 Nut .243 / .250 Speedomerer Casing.
93354
Use With HN102 Nut

.243 / .250 Upper Ferrule
7/8-18 Thd.

Upper Ferrule for 7/8-18 Male Thd .243 / .250 Speedomerer Casing.
69930



Ferrules for .297" Diameter Outer Casing
Lower Ferrule
HF101
Lower Ferrule for 7/8-18 Nut .297 Speedomerer Casing.
63315

Upper Ferrule
HF104
Upper Ferrule for 5/8-18 Nut .297 Speedomerer Casing.
102547

7/8-18 Thd. Male Ferrule
HF110
Upper Ferrule for 7/8-18 Male Thd .297 Speedomerer Casing.



Ferrules for .333"Diameter Outer Housing
HF114
HF114 / 823813 GM Upper Ferruel .330 / .333 Casing
GM Upper Ferrule
823813
HF115
HF115 / 820051 Chrysler / Dodge  Upper Ferruel .330 / .333 Casing
Chrysler / Dodge
820051
HF116
HF116 / 821146-1 Ford Upper Ferruel .330 / .333 Casing
Ford Upper
821146-1
HF119
.330 / .333 Lower Ferruel For 7/8-18 Thd. Nut
Lower Ferrule for 7/8"-18 Nut
820733-10

Use With HN102 Nut
HF121
HF121 / 824012  Ford Lower Ferruel .330 / .333 Casing
Ford Lower Plug -In
824012
HF131
.330 / .333 Upper Ferruel For 5/8-18 Thd. Nut
Upper Ferrule For 5/8"-18 Nut
820733-3

Use With HN101 Nut

HF151
Upper Ferrule for 7/8-18 Male Thd .330/.333 Speedomerer Casing.
7/8-18" Thd. Male Ferrule
820733-33
HF139
HF139 / 827746,  C-41 Chrysler / Dodge  Upper Ferruel .330 / .333 Casing
Chrysler / Dodge
HF142
HF142m A-60  Ford Lower Ferruel .330 / .333 Casing
1983 Ford Lower Plug-In
Speedometer Housing
Firewall Grommet
Fits 15/16"- 1" Holes
.330

FWG
Fits .243 / .297 / .330 Housing



Click Here To Return To The Home Page.

Texas Industrial Electric Co.
San Antonio Texas
Phone 210-654-4075
Fax 210-599-2843

We accept American Express, Master Card, Visa & Discover
We accept American Express, Master Card, Visa & Discover
We accept American Express, Master Card, Visa & Discover
We accept American Express, Master Card, Visa & Discover

E-mail : TIE@TexasIndustrialElectric.com

Alternators - Starters Electrical Speedometer Drive Accessories Links

Copyright TexasIndustrialElectric.com 1981 / 2023
