70 Amp Cole Hersee High Capacity Mini Relay
70 Amp Cole Hersee High Capacity Mini Relay
High Capacity Mini Relay
SPDT
Cap Material = Plastic

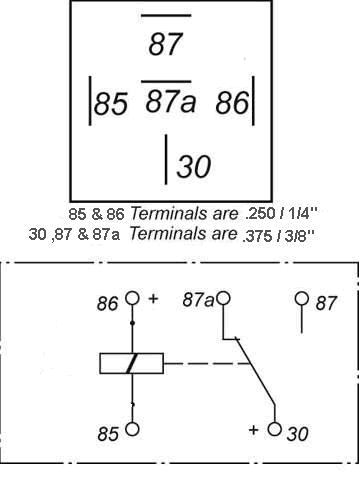

5 Terminals:
# 85 .250" Ground To Activate Relay
# 86 .250" 12 Volt Off and On Power To Activate The Relay.
# 30 .375" Main Battery Power To Relay.
# 87a .375" Normally Closed Connection to the # 30 Terminal.
# 87 .375"
Normally Open Connection to the # 30 Terminal To Load from Relay.

12 volts
70 amps
Continuous Duty
Unsealed
Can Be wired to be used for Reversing Permanent Magnet Motors.
"2 Relays are Required"
Such as Small Winches, Small Hoist
Any Small Reversible Permanent Magnet Motor.
Continuous Duty
