12/24 Volt DC Series Parallel Switch.

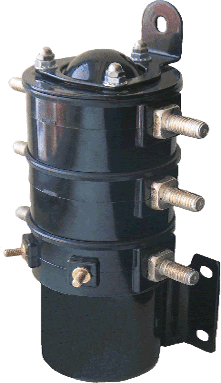

T-114-12 12/24 Volt Series Parallel Switch Relay

Click Here For Line Drawing Of the T-114-12 Series Parallel Switch
T-107-24 24/48 Volt Series Parallel Switch Relay
Series Parallel Switch
Series Parallel Switch
Heavy Duty 8 Terminal Series Parallel Switch
2 Normally Closed Circuits
1 Normally Open Circuit
Used on Marine & Industrial Applications.
12/24 Volt Series Parallel Switch
Can be used to Control 24 Volt Bow Thrusters on large Boats a 1119865CD may be required .
Extended Duty Applications Will Require Use of The SCM (Solenoid Controller Module).
Cranking Systems on 24 Volt & Charging on 12 Volt
Voltage: 12/24
Coil: Insulated Circuit
Rated at 1500 amps Intermittent Duty.
175 Amp Charging Circuit
Contacts : Silver
Relay Battery Terminal Studs 3/8 x 16
Coil Terminal studs 10x32
Can Be Used To Replace Leece Neville 5155S
